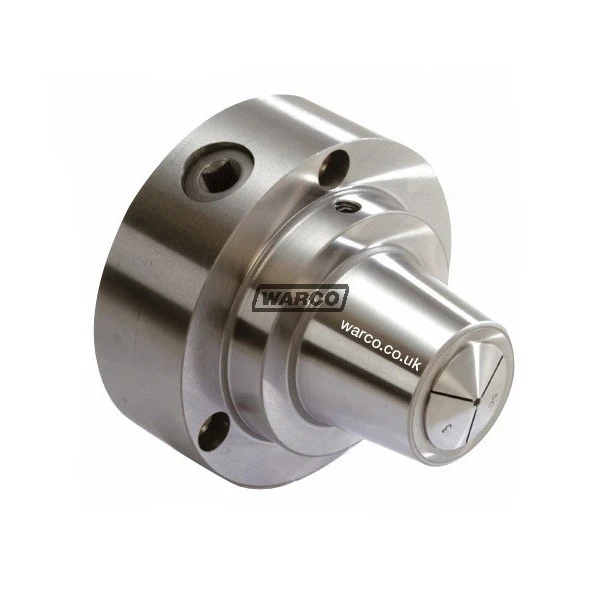

5C Precision Collet Chuck For Lathes

5C Precision Collet Chuck for Metal Lathes

A very well engineered tool with excellent quality throughout.

This collect chuck has high levels of precision.

More details

• Diameter – 5″.

• Scroll mechanism, key operated.

• Top levels of precision, fantastic quality throughout.

• Accepts 5C collets (collet not included).

• Fits to a lathe with corresponding backplate (more details below).



Collets available in either metric or imperial

• Metric 5C collets

• Imperial 5C collets

Fitting a collet chuck to a lathe

• To mount a collet chuck to your lathe it is necessary to add a backplate.

• Machining the backplate is best undertaken on your lathe to achieve maximum accuracy.

• To do this, secure the back plate to the spindle. Skim across the face to ensure squareness, then machine a spigot to match the register of the collet chuck.

• It is necessary to measure the PCD of the fixing holes in order to secure the chuck to the backplate.

• Range of lathe back plates available here.

Other versions now available

• 5C collet chuck – D1-3 fitment

• 5C collet chuck – D1-4 fitment

• 5C collet chuck – D1-5 fitment

Price includes VAT & UK mainland delivery.
