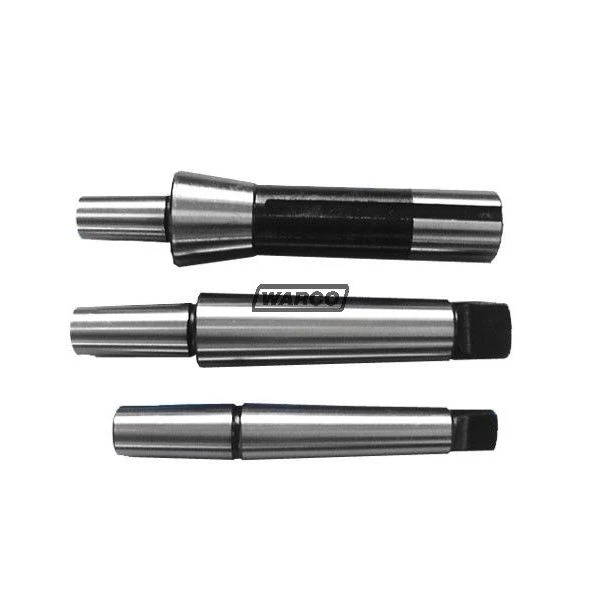

Arbor For Mills – 2MT / 3MT / R8

Arbor for Milling Machine – Threaded

Range of quality arbors for use in a variety of chuck and machine combinations.

• Ideal for fitting a drill chuck to a mill.

• Tapped for mill drawbars.

• An essential addition.

• Select the size you require from the drop down list above.

Guide to machine compatibility below.

Types available

Item No.	Machine taper	Chuck taper	Thread
8918.3/8	2MT	B16	3/8″ Whit.
8918.10	2MT	B16	10mm
9411.3/8	3MT	B16	3/8″ Whit.
9411.12	3MT	B16	12mm
5412	3MT	B18	12mm
8129A	R8	B16	7/16″ Unf
8130B	R8	B18	7/16″ Unf

Drill chucks to suit these arbors available on these pages: Key drill chucks / Keyless drill chucks

Recommended arbor sizes to fit Warco milling machines

2MT machines eg WM 12, WM 14, WM 16

• 2MT B16 tapped either 3/8″ (8918.3/8) or 10mm (8918.10).

3MT machines eg Major, Major GH

• 3MT B16 tapped either 3/8″ (9411.3/8) or 12mm (9411.12) for B16 drill chuck.
• 3MT B18 (5412) for B18 drill chuck.

R8 machines eg GH 18,  GH Universal, Super Major, WM 20, WM 40

• R8 B16 (8129A) for B16 drill chuck.
• R8 B18 (8130B) for B18 drill chuck.



More information

• To select the correct arbor to match a particular drill chuck, the key thing is that the arbor taper matches that of the drill chuck. For example, a B16 drill chuck requires a B16 arbor. A B16 drill chuck would not be compatible with a B18 arbor.
