Backplate For Boxford Lathes

Backplates for Boxford Lathes

Backplates allow the mounting of collet chucks or alternative lathe chucks.

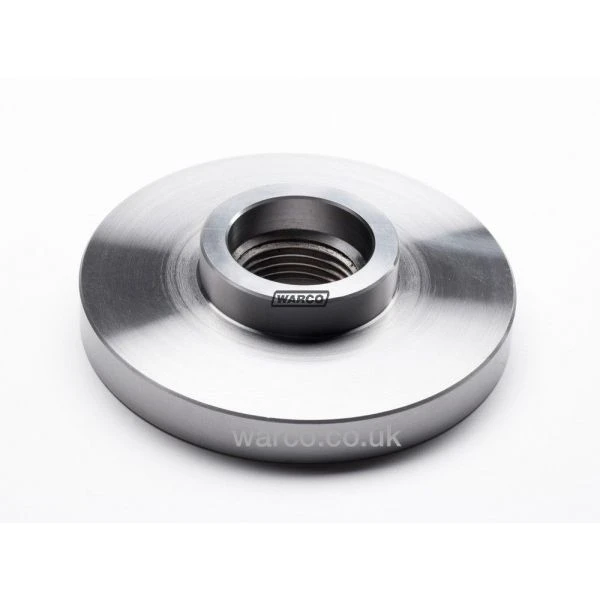

This backplate is designed specifically to fit Boxford lathes.

Also suitable for Atlas, Viceroy and Southbend machines.

Diameter – 125mm.

Thread size – 1 ½” x 8 tpi.

Backplate fitting

Backplates are supplied machined to fit to the appropriate lathe spindle on one side, and plain on the other side.

• Backplate machining will be required on the unmachined side to suit your particular application, which is a straightforward procedure.

• To ensure absolute accuracy, it is necessary to machine a suitable spigot on the backplate to match the register in the back of the chuck.

• Due to the various chuck PCDs, it is also necessary to drill and possibly tap the backplate to accept whichever chuck is being mounted.



Collet chucks

• Back plates are ideal for mounting a collet chuck to a lathe.

• Collet chucks available in ER 25, ER 32 or 5C sizes here.



Other backplates available

• To fit Warco lathes

• To fit D1-3 lathes

• To fit D1-4 lathes

• To fit Myford lathes
