Backplate For D1-4 Lathes

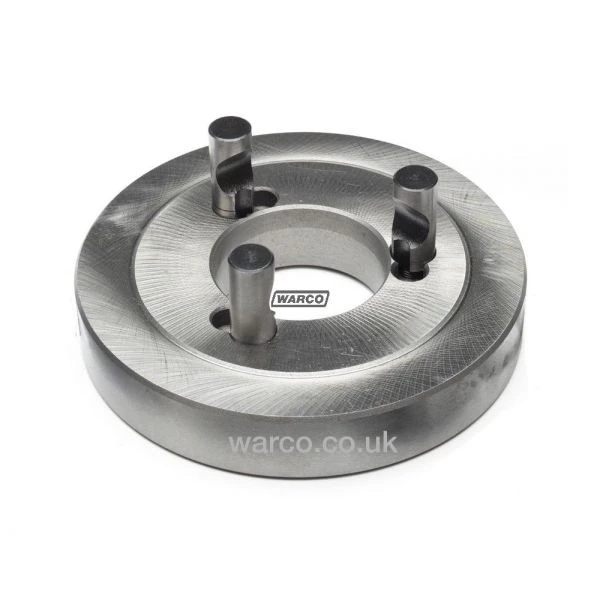

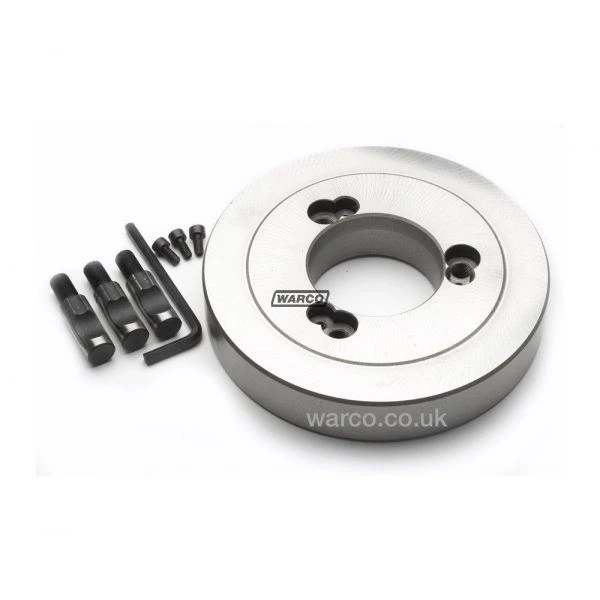

Backplates for D1-4 Lathes

Backplates allow the mounting of collet chucks or alternative lathe chucks.

These backplates are designed to fit D1-4 camlock chuck mounting lathes.

Choice of different diameters

• 160mm (Item No. 5429)

• 200mm (Item No. 5430)



Warco lathes these are suitable for include

• GH1236

• GH1322

• GH1330

• GH1440

• WM 290V (Item No. 2900D only, more details below)



Backplate fitting

Backplates are supplied machined to fit to the appropriate lathe spindle.

Backplate machining will be required on the other side to suit your particular application, which is a straightforward procedure:

• To ensure absolute accuracy, it is necessary to machine a suitable spigot on the backplate to match the register in the back of the chuck.
• Due to the various chuck PCDs, it is also necessary to drill and possibly tap the backplate to accept whichever chuck is being mounted.



Collet chucks

• Back plates are ideal for mounting a collet chuck to a lathe.

• Collet chucks available in ER 25, ER 32 or 5C size here.



WM 290V note

• There are two versions of the WM 290V lathe.
• The most recent model numbered 2900D has a D1-4 fitment, so this is the compatible backplate. This version of the lathe was sold from 2022 onwards.
• The previous version of the WM 290V was numbered 2900, this is not D1-4 – the backplate for that model can be found here.
