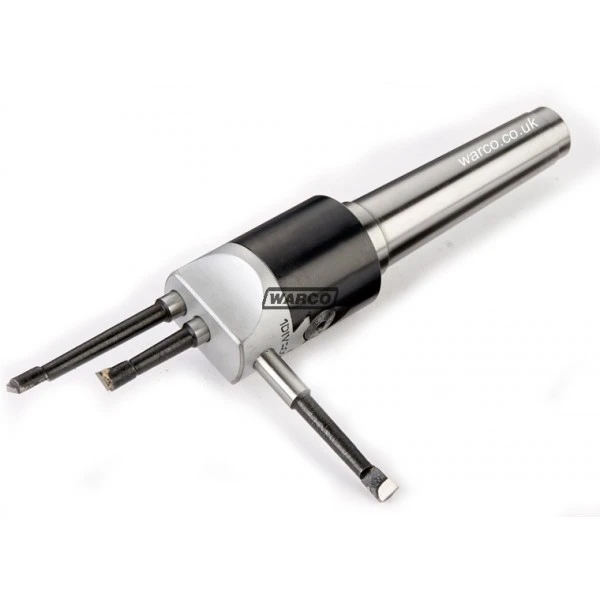

Boring Head Set 38mm – 2MT

Milling Boring Head Set 2MT

Diameter 38mm (1.5″)

High precision milling machine boring head, very well engineered throughout.

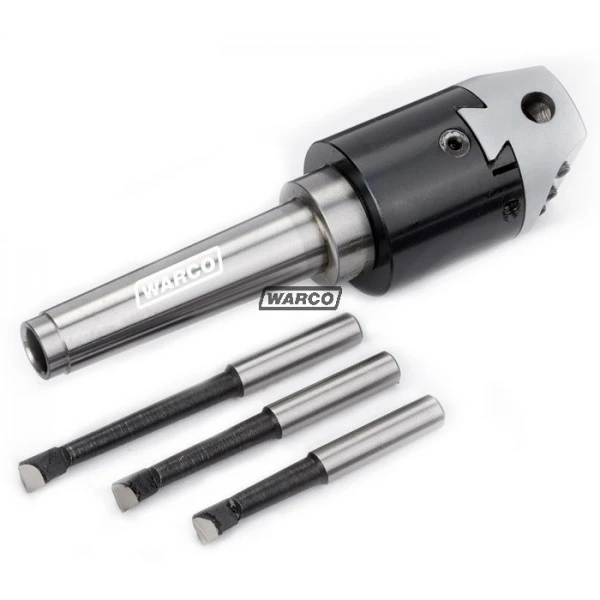

Supplied with set of 3 carbide brazed boring bars in 8mm size.

Specification

• Head diameter – 38mm

• Capacity with vertical tool – 0-38mm

• Maximum boring diameter excluding tool – 60mm

• Accepts tooling diameter – 8mm

• Calibrated divisions – 0.001″

• Two vertical boring bar positions – centre & off set for maximum bore diameter.

• Two horizontal boring bar positions.

• Shank – 2MT (2 morse taper).

• Option of metric or imperial thread for drawbar.

Thread options for 2MT (select from drop down menu above)

• Tapped 10mm  (Item No. 9632M)

• Tapped 3/8″ Whit  (Item No. 9632)



Price includes VAT and UK mainland delivery.



Other versions of this tool available

• 3MT set

• R8 set
