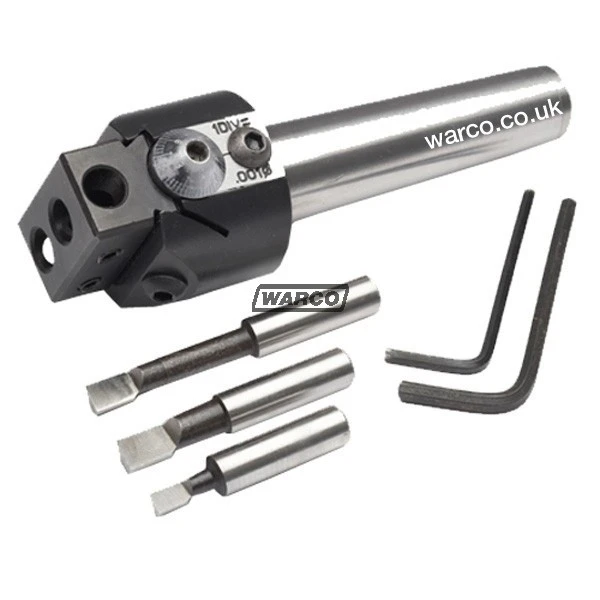

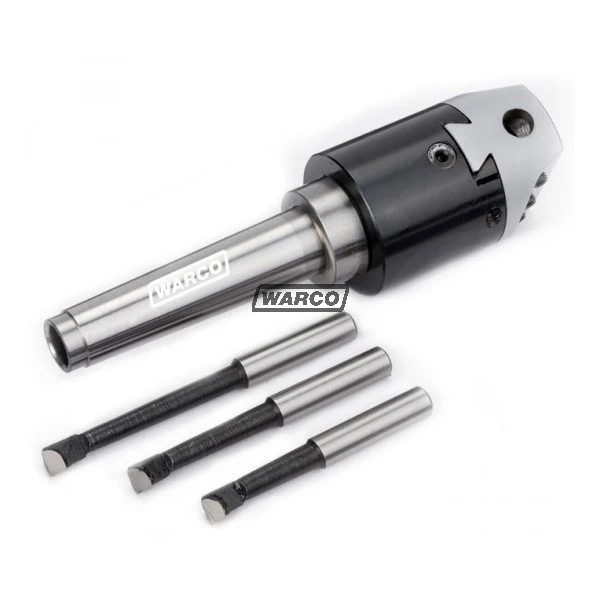

Boring Head Set 38mm – 3MT

Milling Boring Head Set 3MT

Diameter 38mm (1.5″)

High precision milling machine boring head.

Very well engineered and durable set.

Supplied with set of 3 carbide brazed boring bars in 8mm size.

Shank size – 3MT (3 morse taper)

Specification

• Head diameter – 38mm

• Capacity with vertical tool – 0-38mm

• Maximum boring diameter excluding tool – 60mm

• Accepts tooling diameter – 8mm

• Graduations – 0.001″

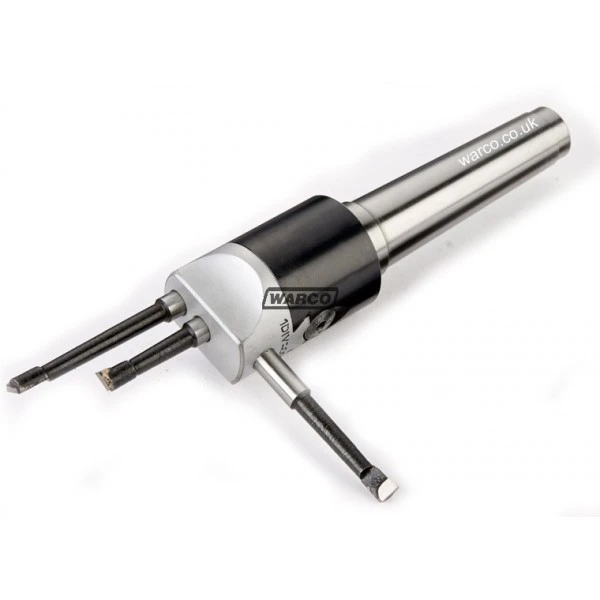

• Two vertical boring bar positions – centre and off set for maximum bore diameter

• Two horizontal boring bar positions

• Tapped for drawbar – 3/8″ Whitworth

Price includes VAT and delivery.



Other sizes available

• 2MT set

• R8 set
