ER 25 Collets – Metric

ER 25 Collets – Metric

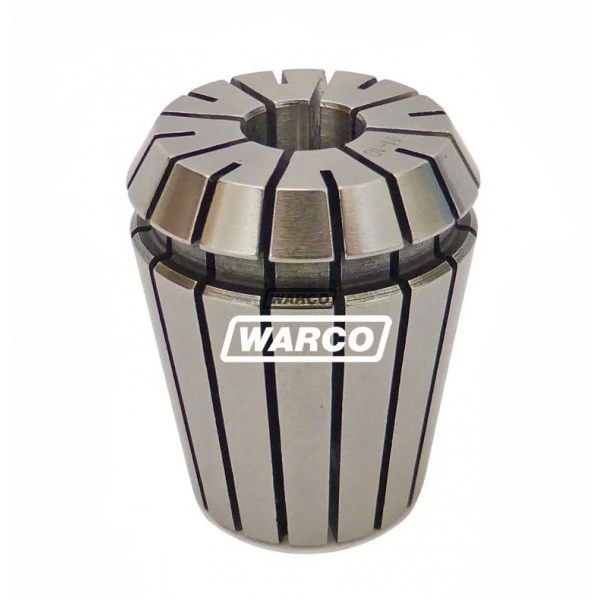

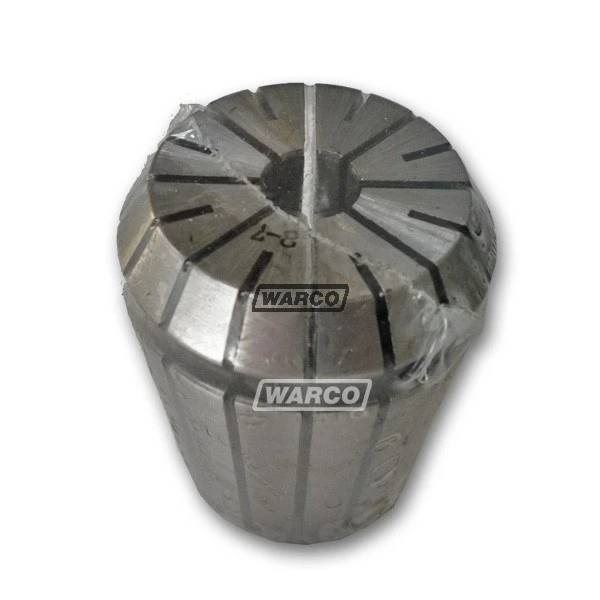

ER 25 individual collets in a range of metric sizes.

The ER system really offers unbeatable performance.

Capacity ranges from 1.5-1mm to 16-15mm.

Metric sizes available

• ER25 Collet  1.5-1mm (Item No. 9094.1.5-1)
• ER25 Collet  2-1.5mm (Item No. 9094.2-1.5)
• ER25 Collet  2.5-2mm (Item No. 9094.2.5-2)
• ER25 Collet  3-2mm (Item No. 9094.3-2)
• ER25 Collet  4-3mm (Item No. 9094.4-3)
• ER25 Collet  5-4mm (Item No. 9094.5-4)
• ER25 Collet  6-5mm (Item No. 9094.6-5)
• ER25 Collet  7-6mm (Item No. 9094.7-6)
• ER25 Collet  9-8mm (Item No. 9094.9-8)
• ER25 Collet  8-7mm (Item No. 9094.8-7)
• ER25 Collet  10-9mm (Item No. 9094.10-9)
• ER25 Collet  11-10mm (Item No. 9094.11-10)
• ER25 Collet  12-11mm (Item No. 9094.12-11)
• ER25 Collet  13-12mm (Item No. 9094.13-12)
• ER25 Collet  14-13mm (Item No. 9094.14-13)
• ER25 Collet  15-14mm (Item No. 9094.15-14)
• ER25 Collet  16-15mm (Item No. 9094.16-15)

Advantages of the ER collet system

• By far the most versatile collet system.
• The main advantage is the ability for the collets to grip both imperial and metric sizes.
• Additionally, threaded shank or plain shank cutters can be used.
• The ER system is an industry standard, originally for use on milling machines.
• To widen the application, we have introduced an inexpensive ER collet chuck to fit to a lathe backplate. Bar stock can pass through the collet and lathe spindle.
• The ability to use similar collets for both lathe and milling machines results in exceptional versatility and value.

Related products

• We also offer the ER collet system in boxed sets for mills with chuck included in this category.

• Alternatively a milling collet chuck or lathe collet chuck can be purchased separately – then individual collets can be added to suit your application.

Also available

• ER 25 collets in imperial sizes

• Complete boxed set 17 piece metric ER 25 collets
