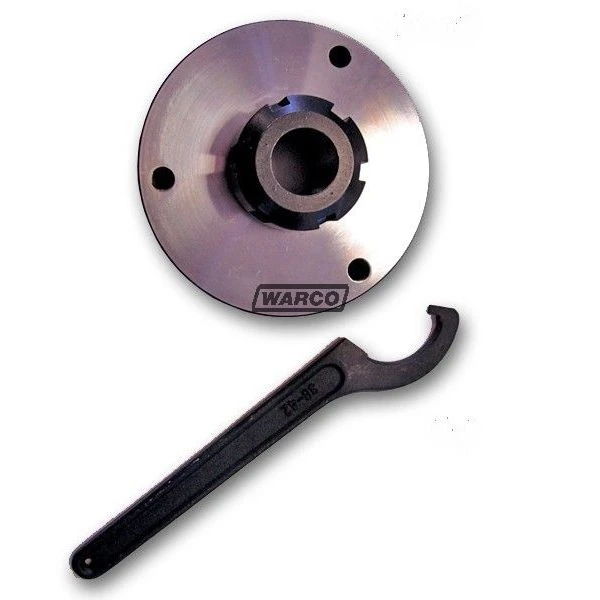

ER 25 Lathe Collet Chuck 100mm

ER 25 Lathe Collet Chuck 100mm

Low Cost, highly accurate collet chuck for lathes

The ER collet system offers unbeatable performance.

Specification

• Hardened and ground.

• Bar stock will pass through collet and chuck.

• Collet capacity 1.5mm – 16mm.

• Diameter – 100mm.

• Register – 72mm.

• Supplied complete with C spanner.



Compatibility

• Ideally suited to Warco lathes such as the WM 180 / 240 / 250 / 280.

• For larger machines, we recommend the equivalent ER 32 chuck.

• Backplate required to fit this to the following Warco lathes: 240 / 240B / 250 / 250V / 280V / Mini / older Super Mini*.

• Backplate not required to fit onto the following Warco lathes: New Super Mini* /  WM 180 – for these it is a direct fitment.

• Backplate for Warco lathes available separately here.



How to fit this collet chuck to a lathe?

• To mount this collet chuck to your lathe it is necessary to add a backplate. (This doesn’t apply to the New Super Mini Lathe / WM 180 – for these, a backplate is not required).

• Machining the backplate is best undertaken on your lathe to achieve maximum accuracy.

• To do this, secure the back plate to the spindle.

• Skim across the face to ensure squareness, then machine a spigot to match the register of the collet chuck.

• It is necessary to measure the PCD of the fixing holes in order to secure the chuck to the backplate.

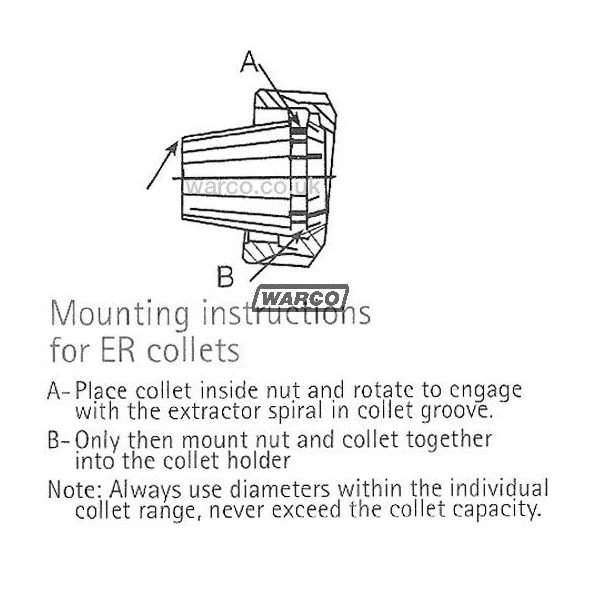

• Image showing how to mount ER collets shown above.



*Note about compatibility with Mini Lathes

This collet chuck is directly compatible with the Warco Super Mini Lathe (Item No. 4900 & 4901) – the latest version only, which is the type supplied with a 100mm 3 jaw chuck when new. For the (non-Super) Mini Lathe and previous versions of the Super Mini Lathe (those supplied with an 80mm chuck when new), a backplate is still required.

See also

• Lathe backplates

• Full range of ER 25 collets to fit this chuck in the collets category
