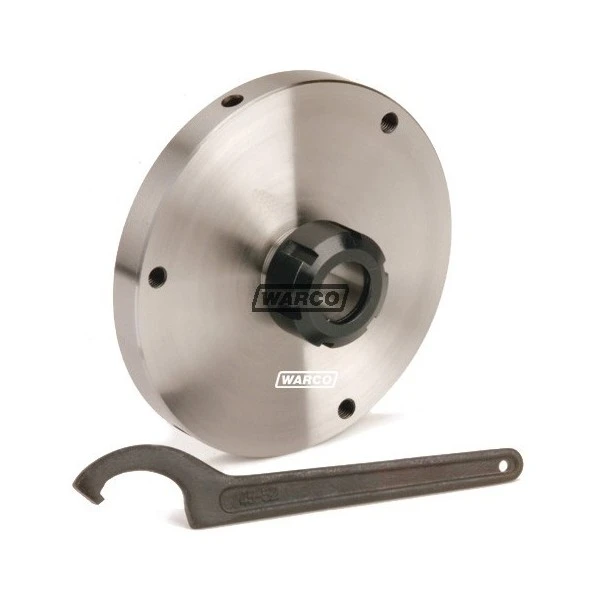

ER 32 Lathe Collet Chuck 100mm / 150mm

ER 32 Lathe Collet Chuck – 100mm / 150mm

Low cost, accurate collet system for lathes.

The ER system offers unbeatable performance.

Specification

• Hardened and ground

• Bar stock will pass through collet and chuck

• Collet capacity – 3mm to 20mm

• 100mm or 150mm diameter

• Register – 72mm / 115mm

• PCD – 84mm / 132mm

• Flange width – 18mm

• Overall width – 50mm

• Complete with C spanner



Diameters available

• 100mm (Item No. 9027)

• 150mm (Item No. 8010)



Compatibility

• Ideally suited to Warco lathes including WM 250V / 280V / WM 290V / GH600 / GH1230 / GH1236 / GH1322 / GH1330 / GH1440.

• Requires a separately available backplate to fit to lathe – more details below.

• For smaller lathes, we recommend the equivalent ER 25 collet chuck.



How to fit a collet chuck to a lathe

• To mount collet chuck to a lathe, it is necessary to add a backplate.

• Machining the backplate is best undertaken on your lathe to achieve maximum accuracy.

• To do this, secure the backplate to the spindle. Skim across the face to ensure squareness, then machine a spigot to match the register of the collet chuck.

• It is necessary to measure the PCD of the fixing holes in order to secure the chuck to the backplate.

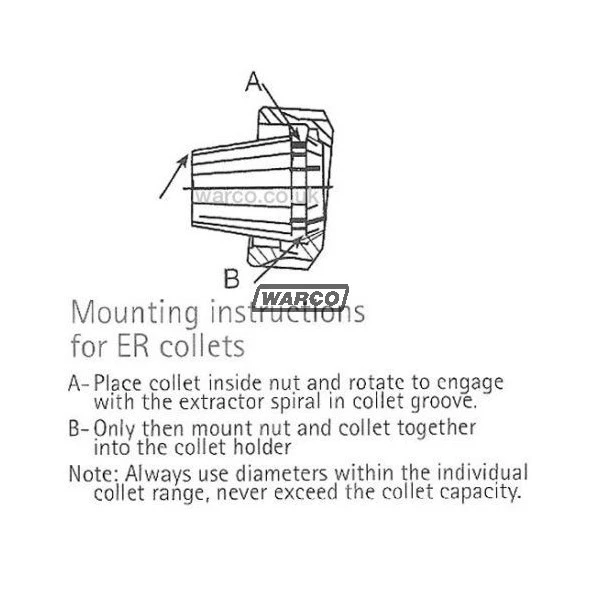

• Image above shows how to mount ER collets.



Also available

• Lathe backplates

• ER 32 collets in metric sizes

• ER 32 collets in imperial sizes

• ER 32 collets complete box set

• ER 32 collet chuck D1-4 fitment
