Indexable Lathe Tools – 5 Piece Turning & Boring Set

Indexable Lathe Tools – 5 Piece Turning & Boring Set

Supplied with 2 sets of replacement tips, boring bar supplied with clamp type holder

Turning tools set for metalworking with replaceable tips.

• With carbide titanium nitride (TIN) coating for long lasting use.
• Presented in quality aluminium case with moulded insert to accommodate individual tools.
• Supplied with torx tool for tip replacing.
• All new design.

Types available

Item No.	Dimensions	Tool type	Replacement tip type	Tip Item No.
9681	8mm set Lathe tools – 8 x 60mm  Boring bar – 7 x 100mm Clamp – 11mm	SVJCR, SVJCL, SCLCR, SSDCN, SCLCR	4PC Insert VCMT110204 4PC Insert CCMT060204 2PC Insert SCMT060204	9681A

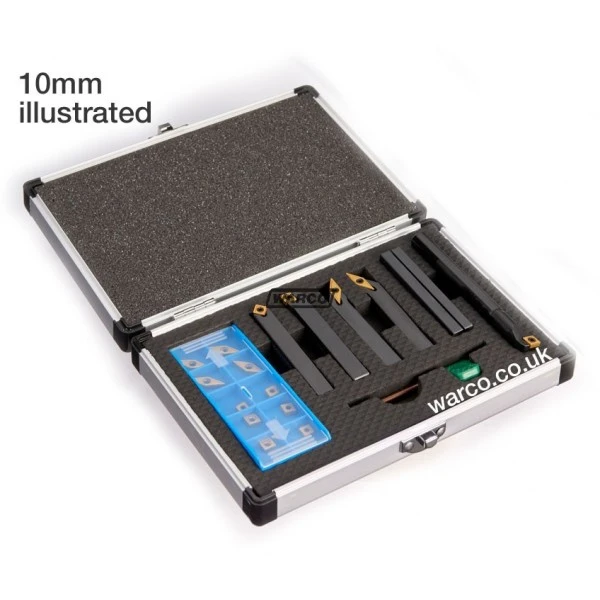

9682	10mm set Lathe tools – 10 x 70mm  Boring bar – 9 x 100mm Clamp – 13mm	SVJCR, SVJCL, SCLCR, SSDCN, SCLCR	4PC Insert VCMT110204 4PC Insert CCMT060204 2PC Insert SCMT060204	9681A
9683	12mm set Lathe tools – 12 x 80mm  Boring bar – 11 x 125mm Clamp – 15mm	SVJCR, SVJCL, SCLCR, SSDCN, SCLCR	4PC Insert VCMT110204 4PC Insert CCMT060204 2PC Insert SCMT060204	9681A

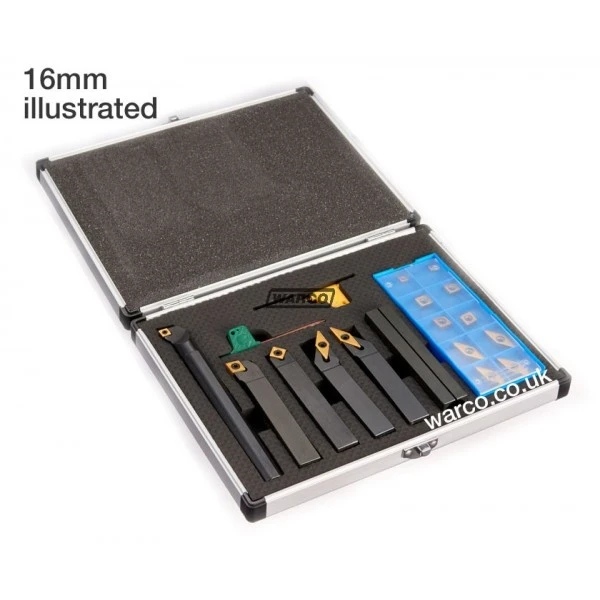

9684	16mm set Lathe tools – 16 x 100mm  Boring bar – 15 x 150mm Clamp – 20mm	SVJCR, SVJCL, SCLCR, SSDCN, SCLCR	4PC Insert VCMT160408 4PC Insert CCMT060204 2PC Insert CCMT09T304 2PC Insert SCMT09T304	9684A
