Lathe Vertical Milling Slide – Tool Post

Vertical Milling Slide Attachment for Lathe Tool Post

Quality lathe vertical slide. Ingenious design, this device will allow milling on smaller lathes.

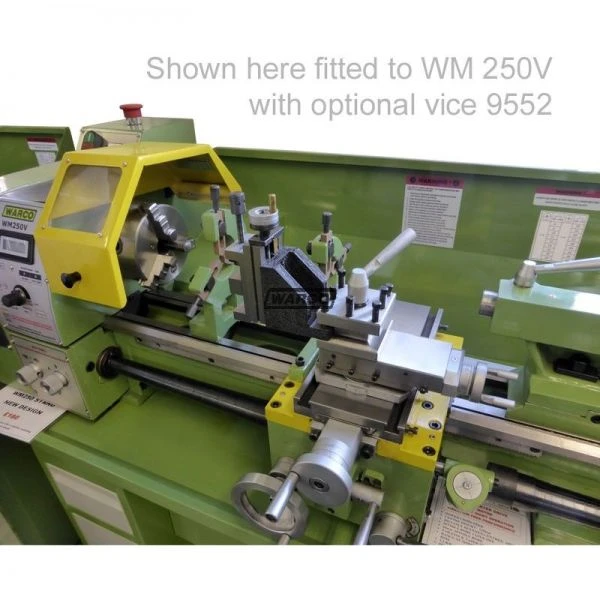

• The vertical slide is held in the lathe tool post.
• If the tool post is an indexing four way type, the vertical side can be rotated in a vertical plane to allow access to the side of the work piece – this will of course depend on the cross slide travel.

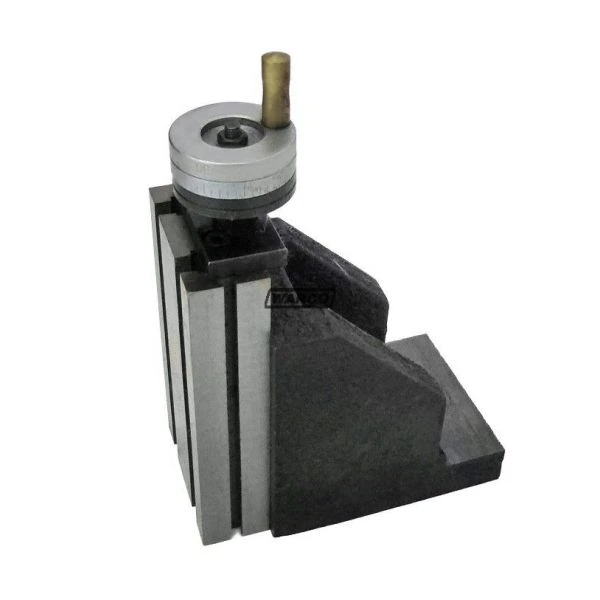

• Cast iron construction.

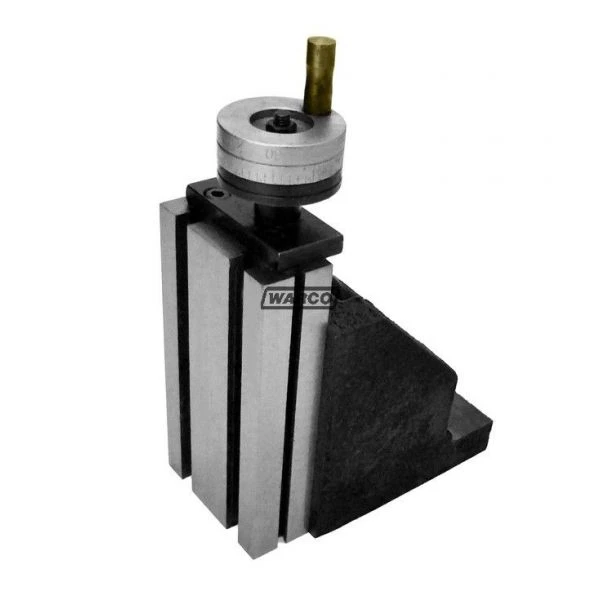

• Two vertical tee slots to accommodate a work piece or the optional vice (Item No. 9552).



Dimensions

Height	100mm
Width	50mm
Base	77 x 60mm
Jaw opening	70mm
Tee slot width	10mm
Tee slot centres	26mm
Fixing hole centres	22mm at 90° to slide face
Clamping depth	13.3mm

Price includes mainland UK delivery and VAT at 20%.
