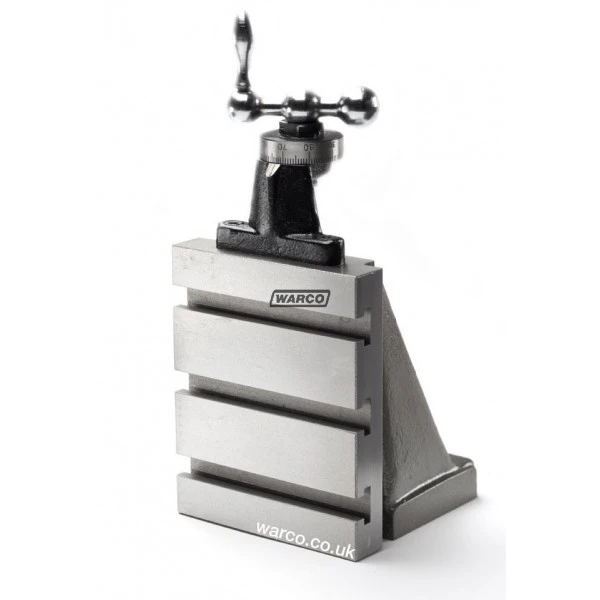

Lathe Vertical Milling Slide – Warco & Myford 7 Lathes

Vertical Milling Slide for Warco & Myford Lathes

Top quality attachment, well engineered throughout.

• Manufactured with high levels of care and precision.

• This attachment allows you to start milling on your lathe.

• The perfect model engineering accessory.

• With metric graduations.

• Very well engineered device, built to last.

Will fit a range of Warco lathes with an additional base plate (available separately)

• For WM 240, 250, 250V – Base Plate 9576

• For WM 280V, 290V & GH600 – Base Plate 9577

Milling slides available – selectable from drop down menu above

• For Myford 7 series lathes, including ML7 and Super 7 – bolts straight on with no adaption needed (Item No. 9024)

• For Warco lathes – fits with separately available base plate (Item No. 9024VS)

Dimensions

• Table size – 100 x 125mm

• Slide travel – 80mm

• Tee slot width – 10mm

Tee slot sizes (manufactured in imperial measurements)

• Tee slot width – 3/8”

• Lower slot – 5/8”

• Height  upper slot – 7/32”

• Height lower slot – 5/32”

Also available to fit this device

• Milling Slide Vice

• Myford Chuck Backplate

• Other accessories available – see below for more details.

Notes

• Will not fit Warco lathes without the relevant additional base plate.



Price includes mainland UK delivery and VAT at 20%.
