Micro-Adjust Router Fence

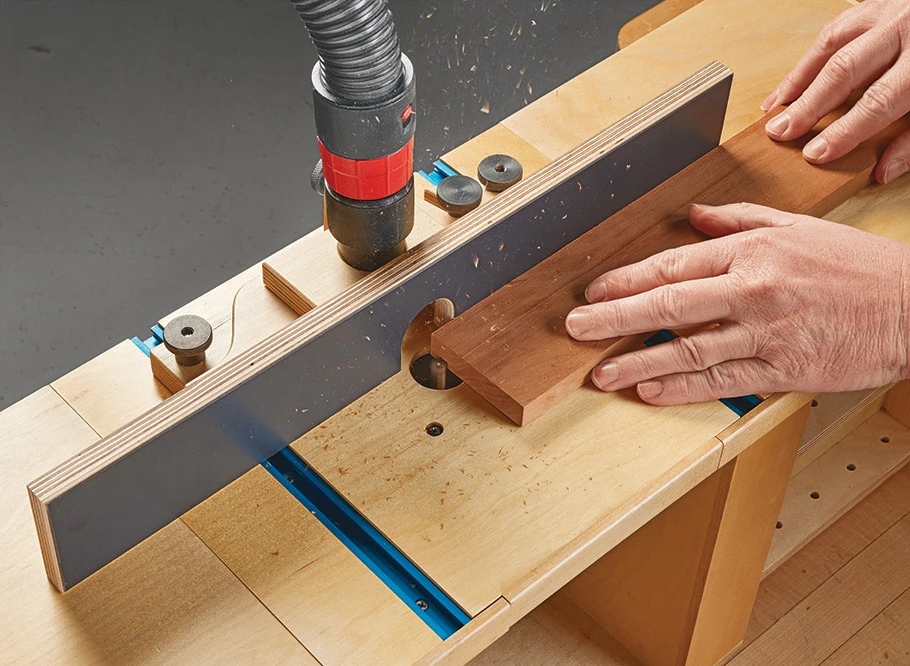

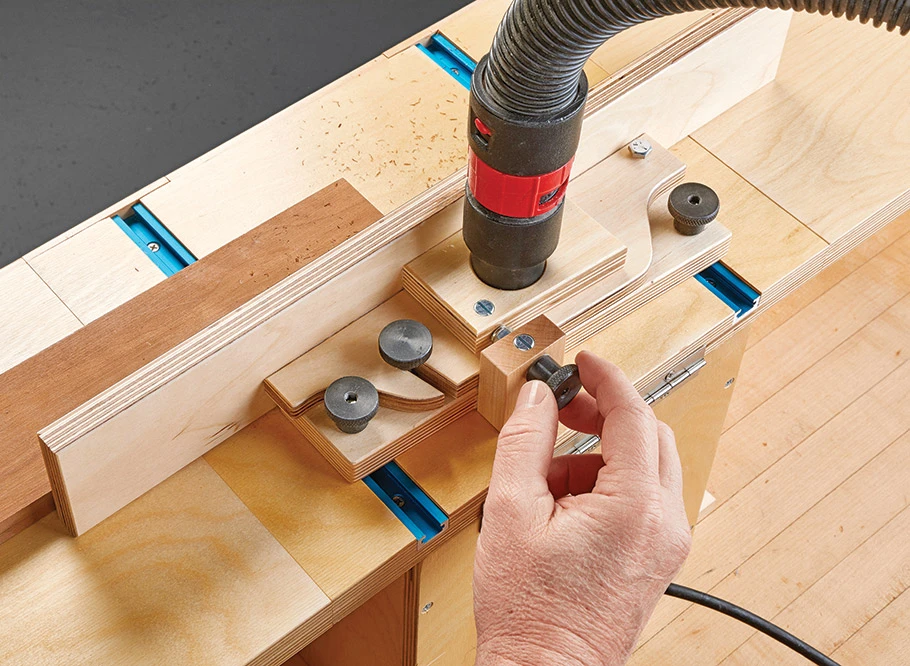

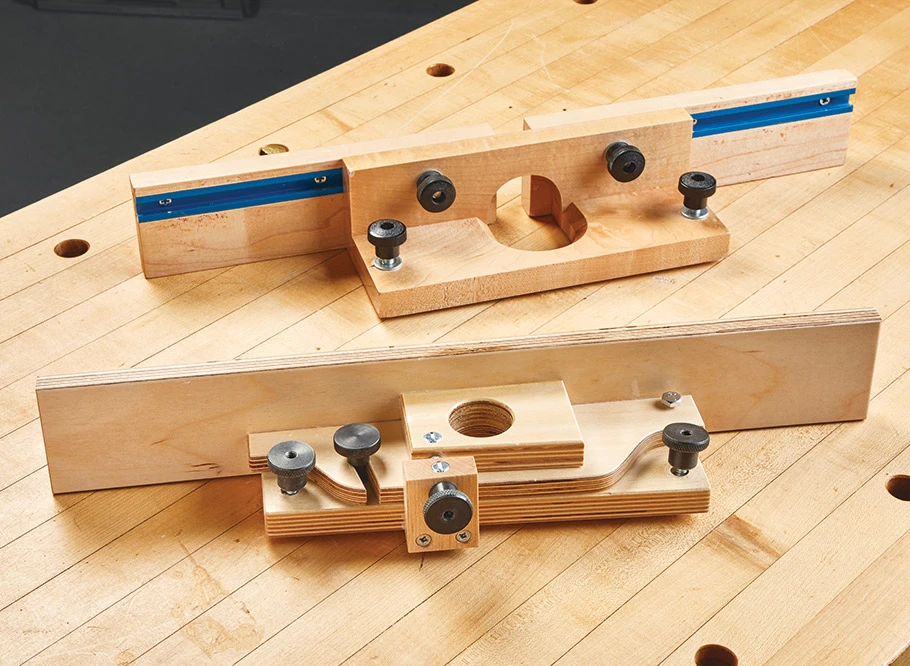

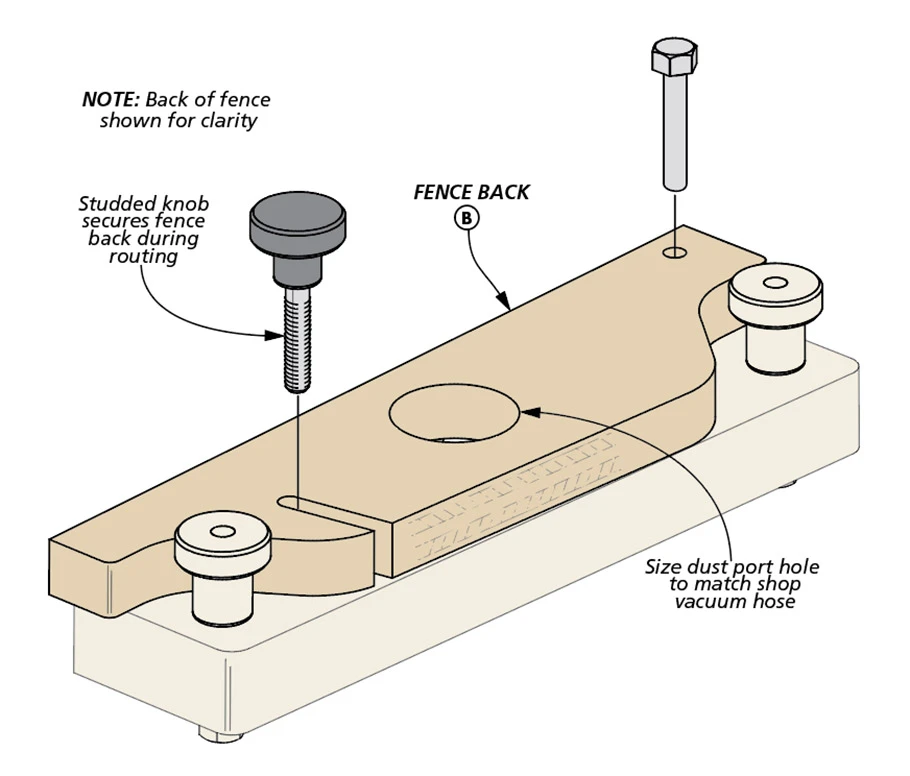

Here’s how the fence works. Knobs and bolts in the base slide in T-tracks in the router tabletop. To provide fine control for adjustments, the fence face pivots on the outfeed side and is controlled by a studded knob. Altogether, you have about 1″ of adjustment. The continuous laminate fence face accommodates most bits. In back, a dust port tames the mess. The fence is mostly made from plywood and the footprint is minimized to work with a small router table. Before you dive into the construction, I want to mention that the dimensions you’ll see are to make this fence fit our Compact Router Table, I hope you can see past those numbers and apply the design to whatever type of router table you have.
