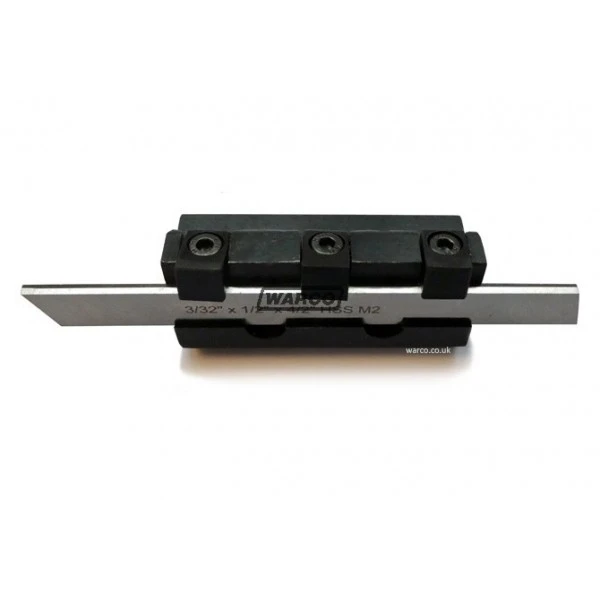

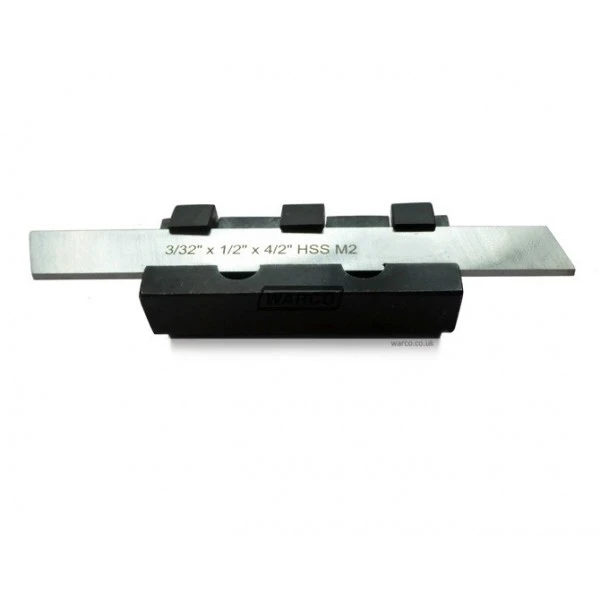

Parting Off Tool – Adjustable Height & Blade

Parting Off Tool – Adjustable Height

Unique design tool, complete with blade.

Features

• Very safe and secure clamping arrangement to ensure blade is held under the most rigorous parting off operations.

• Blade holder clamps onto multi vee surface.

• Blade height adjustable 5mm above or below tool centre.

• Blade length also adjustable.

• Supplied complete with HSS cobalt blade.

• Available with 10mm or 12mm shank size.

Dimensions

10mm version (Item No. 9729)

• Tool shank – 10mm

• Tool holder (length x width x height) – 65 x 25 x 25mm

• Blade size (length x width x depth) – 4 1/2″ x 1/2″ x 3/32″

12mm version (Item No. 9745)

• Tool shank – 12mm

• Tool holder (length x width x height) – 65 x 25 x 25mm

• Blade size (length x width x depth) – 4 1/2″ x 1/2″ x 3/32″
