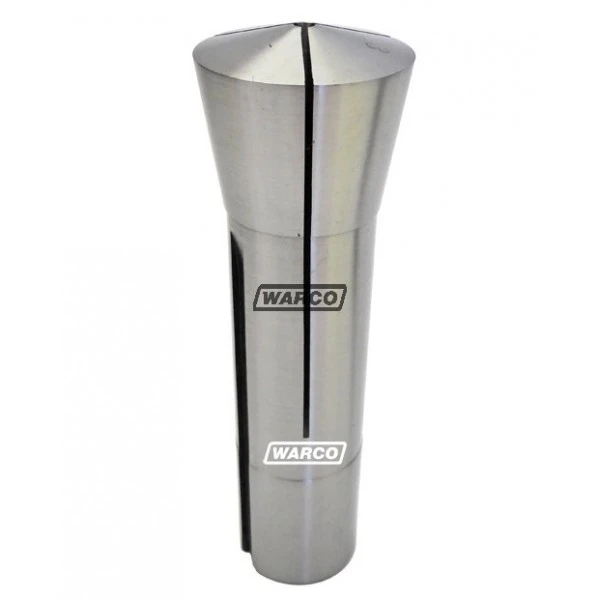

R8 Direct Collets – Imperial

R8 Direct Collets – Imperial

Direct collets in R8 taper size.

• Tapped 7/16″ unf for drawbar.

• Suitable for a range of different milling machines.

• Range range of different sizes available – from 1/8″ to 3/4″.

• Quality very durable milling addons.

Imperial sizes available

• R8 1/8″ (Item No. 4324)

• R8 3/16″ (Item No. 4325)

• R8 5/16″ (Item No. 4326)

• R8 1/4″ (Item No. 4319)

• R8 3/8″ (Item No. 4320)

• R8 1/2″ (Item No. 4321)

• R8 5/8″ (Item No. 4322)

• R8 9/16″ (Item No. 4313)

• R8 11/16″ (Item No. 4314)

• R8 3/4″ (Item No. 4331)

Direct collets

• These collets are an alternative to the collet chuck system.

• Each direct collet is held by the machine drawbar.

• As the collet is drawn into the quill it firmly clamps around the end mill / slot drill shank.

• Both plain and threaded shank cutters can be used.

• Direct collets do not overhang which allows maximum capacity between the spindle and table.

• Collets can be purchased individually and are therefore very affordable.

Also available

• R8 collets in metric sizes.
