Universal Cutter Grinder

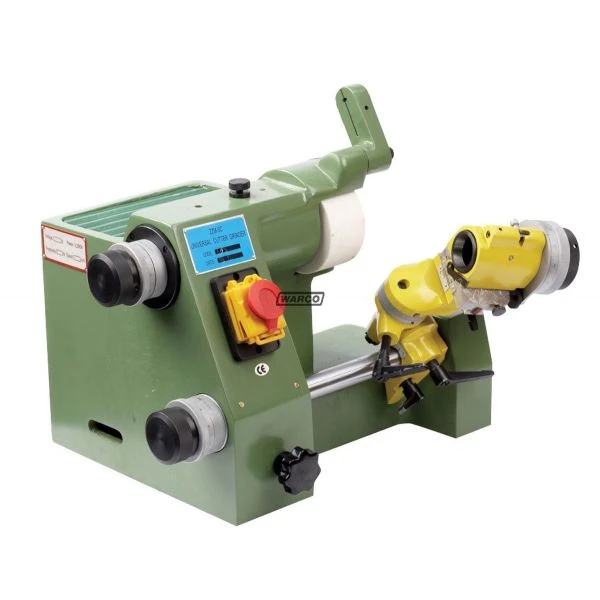

Warco Universal Cutter Grinder

A compact, versatile grinder.

Suitable for HSS and carbide tools.

• Supplied to accept either R8 or 5C collets.

• 24 position universal head.

• Single phase.

• Optional tooling available to accommodate end mills, twist drills or lathe tools.



Types available

• R8  (Item No. 2020R8)

• 5C  (Item No. 20205C)



Specification

Collet capacity R8	20mm
Collet capacity 5C	28mm
Maximum grinding diameter	25mm
Taper angle	0° – 180°
Relief angle	0° – 44°
Negative angle	0° – 52°
Spindle speed	5,200 rpm
Cup grinding wheel	100 x 50 x 20mm
Motor	240v  (1 phase)
Dimensions L x W x H	450 x 400 x 350mm
Weight	45kg
